Casa ProdottiAutocarro con cassone ribaltabile resistente

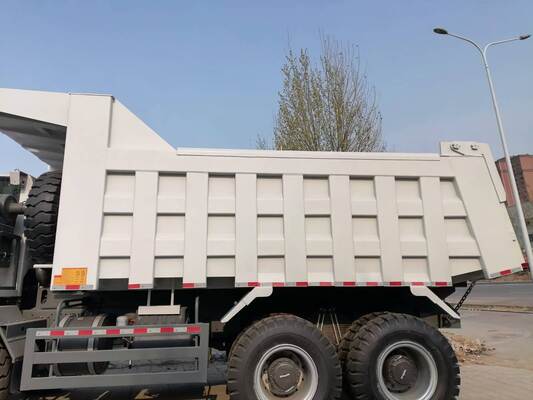

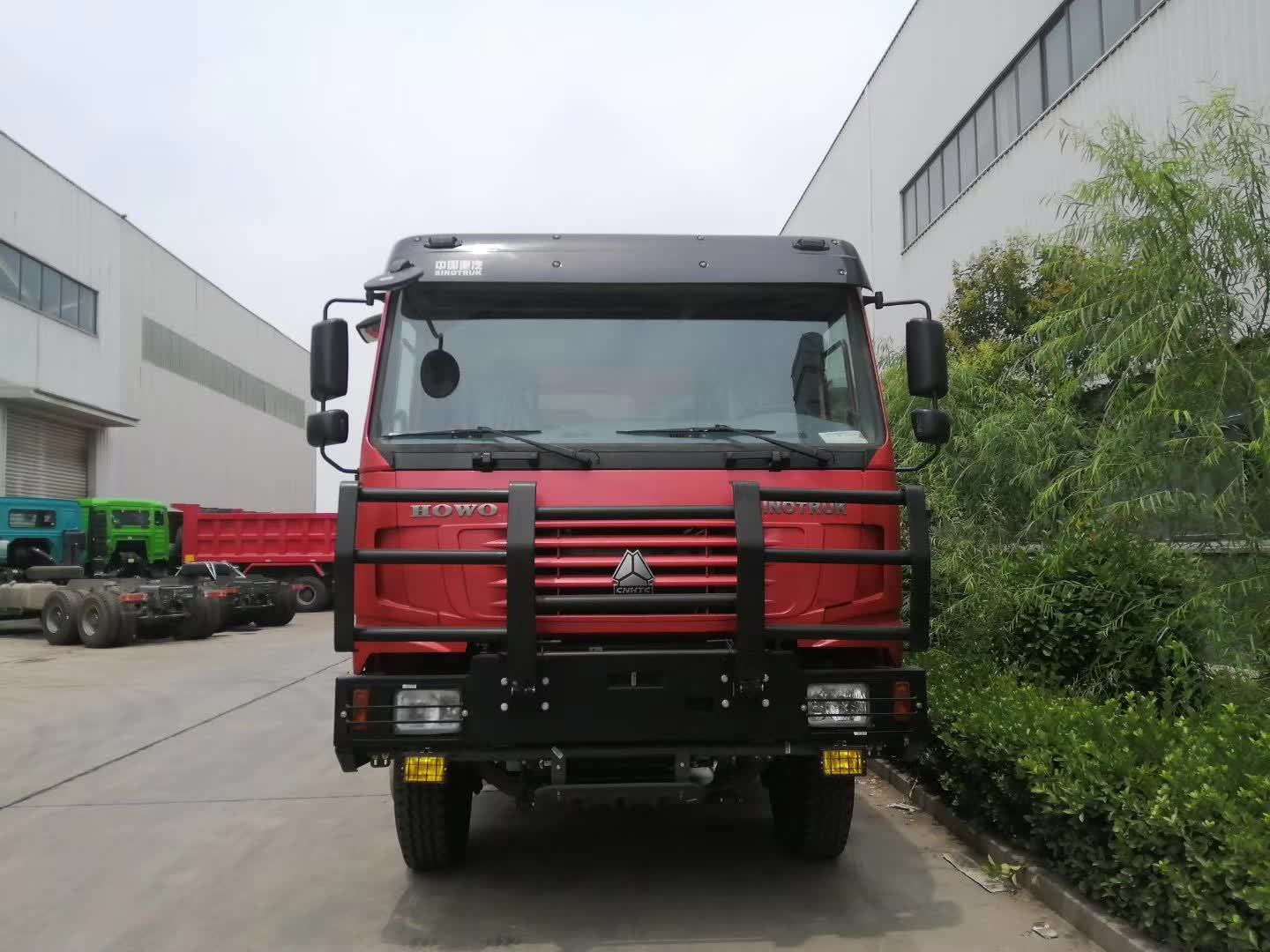

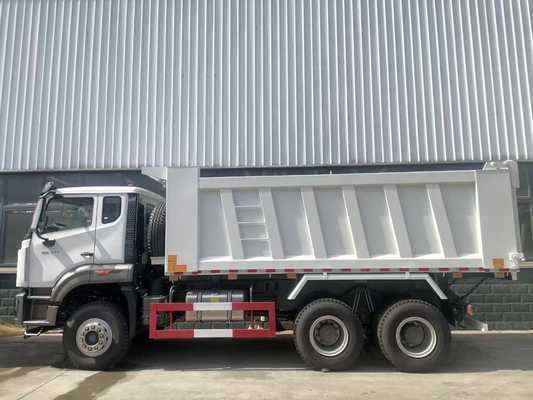

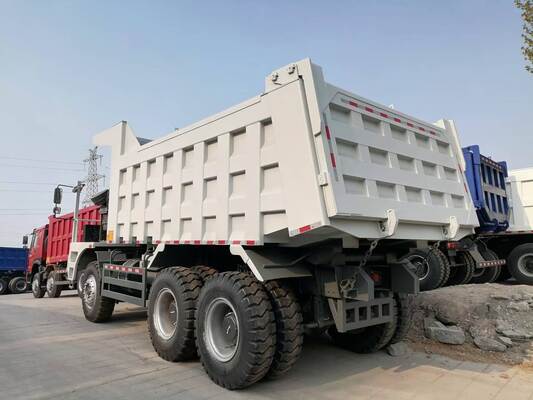

Sinotruk Heavy Duty 8X4 HOWO Nx Tipper Mining Mine Tipping Dump Truck

Sinotruk Heavy Duty 8X4 HOWO Nx Tipper Mining Mine Tipping Dump Truck

  • Sinotruk Heavy Duty 8X4 HOWO Nx Tipper Mining Mine Tipping Dump Truck
  • Sinotruk Heavy Duty 8X4 HOWO Nx Tipper Mining Mine Tipping Dump Truck
  • Sinotruk Heavy Duty 8X4 HOWO Nx Tipper Mining Mine Tipping Dump Truck
  • Sinotruk Heavy Duty 8X4 HOWO Nx Tipper Mining Mine Tipping Dump Truck
Sinotruk Heavy Duty 8X4 HOWO Nx Tipper Mining Mine Tipping Dump Truck
Dettagli:
Luogo di origine: Cina
Marca: howo
Certificazione: iso,
Numero di modello: Howo -7
Termini di pagamento e spedizione:
Quantità di ordine minimo: 1 pz
Prezzo: Negoziabile
Imballaggi particolari: Nudo
Tempi di consegna: 40 giorni di lavoratore
Termini di pagamento: L/C, T/T
Capacità di alimentazione: 500 unità/mese
Contatto
Descrizione di prodotto dettagliata
Modello n.: Howo -7 6*4 Truck per cassone Potenza: 420cv.371cv.380cv
Sterzo: Sinistra/azionamento della mano destra Ruota motrice: 8*4
Tipo della trazione: HW19710 Condizionatore d'aria: Con
Condizione: Nuovo Sedile di guida: Sedile a sospensione pneumatica

SINOTRUK HOWO NX 8×4 HEAVY DUTY DUMP TRUCK – MINING & CONSTRUCTION

Built for mines. Built for Africa. Built to last.

The Short Version



Spec What You Get
Drive Type 8×4 – maximum stability for heavy loads
Engine Weichai 371HP / 380HP / 400HP – Euro II
Gearbox HW19710 (10 forward + 2 reverse) + HW50 PTO
Front Axle VGD95 – 9.5T capacity
Rear Axle MCP16ZG – 16T + 16T double reduction
Tires 12.00R20 (12+1 pcs, with spare)
Fuel Tank 300L – 400L
Cargo Box 18m³ – 28m³ (customizable)
Cab H77L with A/C + sleeper + air seat
Warranty 1 year / 20,000 km

Why 8×4 for Mining?



Problem HOWO NX 8×4 Solution
Heavy loads (30-40 tons) 4 axles distribute weight – less stress on tires and suspension
Muddy mine roads 8×4 drive = 8 wheels on ground – superior traction
Steep inclines 400HP + double reduction axles – climbs without slipping
Rocky terrain Reinforced chassis + heavy-duty suspension – absorbs impact
Long hours in cab Air suspension seat + A/C + wide sleeper – reduces driver fatigue

Technical Specifications



Component Specification
Drive Type 8×4
Engine Weichai WP10.380E22 / WP12.400E32 – 371-430HP, Euro II
Gearbox HW19710 (10F + 2R) with HW50 PTO
Front Axle VGD95 – 9.5T × 2
Rear Axle MCP16ZG – 16T + 16T (double reduction, with diff locks)
Tires 12.00R20 (steel radial), 12+1 pcs
Fuel Tank 300L – 400L steel
Suspension Front: 11 leaf springs + shocks / Rear: 11 leaf + bogie
Brakes Dual circuit air brakes + exhaust brake
Cab H77L – single sleeper, A/C standard, air seat, 4-point suspension
Chassis Frame Double frame (8+8mm) – reinforced for heavy loads

Cargo Box Options – Mining Focus



Application Box Dimensions Material Thickness Special Features
Granite / Hard rock 5400-5800 × 2300 × 1500mm Floor 12mm / Side 10mm Anti-smash strips + triangular ribs
Ore / Mining 5600 × 2300 × 1500mm Floor 10mm / Side 8mm Reinforced welds + impact plates
Sand / Gravel 5800 × 2300 × 1700mm Floor 8mm / Side 6mm Standard U-shape
Large volume 7300 × 2300 × 1700mm (28m³) Floor 8mm / Side 6mm Front lifting system

Mining Upgrade: Based on customer feedback from Ghana, stone mines require 12mm floor + 10mm side plates with anti-smashing strips on the baffle and triangular reinforcement ribs. Higher initial cost, but much longer service life .

Model Comparison



Model Horsepower Torque Load Capacity Best For
Standard 371HP 1,500 Nm 25-30 tons General construction, sand/gravel
Advanced 380-400HP 1,700-2,000 Nm 30-35 tons Quarries, stone hauling
Pro 430-450HP 2,000-2,500 Nm 35-40+ tons Mining, heavy rock, steep inclines

Sinotruk Heavy Duty 8X4 HOWO Nx Tipper Mining Mine Tipping Dump Truck 0
